Influence of Local Cooling Rates on Microstructures and Properties of Cast Iron Alloys

Generally, the microstructures and, thus, the mechanical properties of cast iron alloys depend on

- the chemical composition,

- the state of nucleation and

- the local cooling rates.

Simulation models need to consider these three influencing parameters to be able to make reliable predictions.

The fraction of eutectic phase occurring at equilibrium for an alloy during solidification, can be described with the adjusted degree of saturation SR according to E. Piwowarsky (percentage of eutectic solidification/ total solidification) → (C-CE)/(CC-CE).

In the following example of an alloy with a carbon equivalent (CE) of 3.9 %, the resulting fraction of eutectic phase is 83 %.

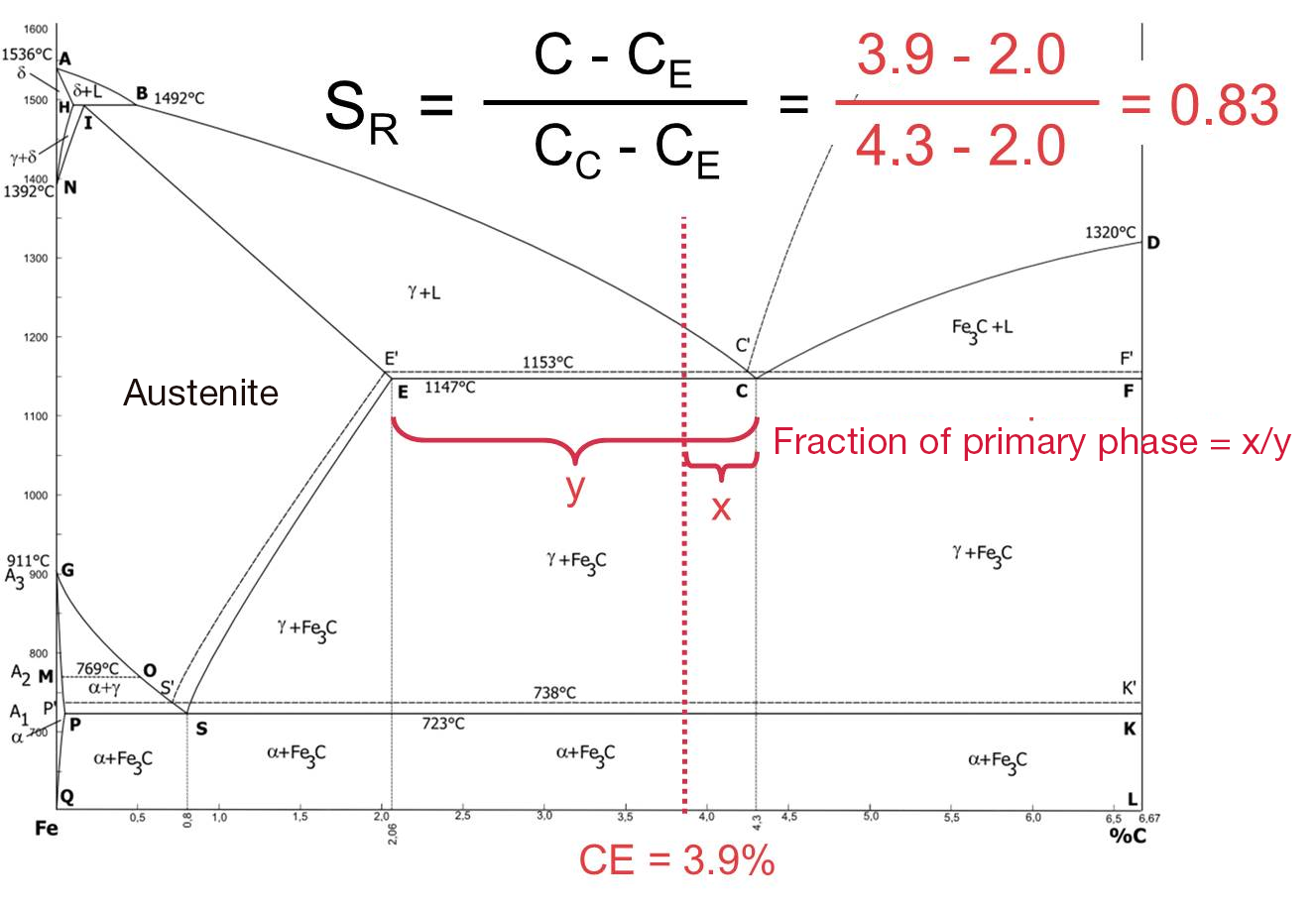

Figure 1: Fraction of eutectic phase in the iron-carbon phase diagram

Thus, the fraction of primary phase (primary austenite) is 17 %.

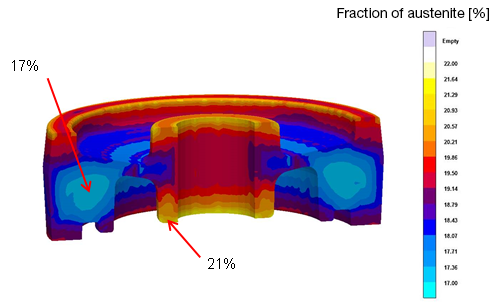

Figure 2: Fraction of primary phase

The simulation, however, reveals substantial differences regarding the fraction of primary austenite, mainly caused by locally differing cooling rates. The theoretical value of 17 % is only reached in the hot spot.

The reason for this behavior is that the eutectic solidification begins at different points in time. In areas that cool down more quickly (thin walls, surfaces), supercooling below the eutectic temperature is greater than in the areas that cool down more slowly (hot spots, thick-walled areas). This is also shown in the corresponding cooling curves.

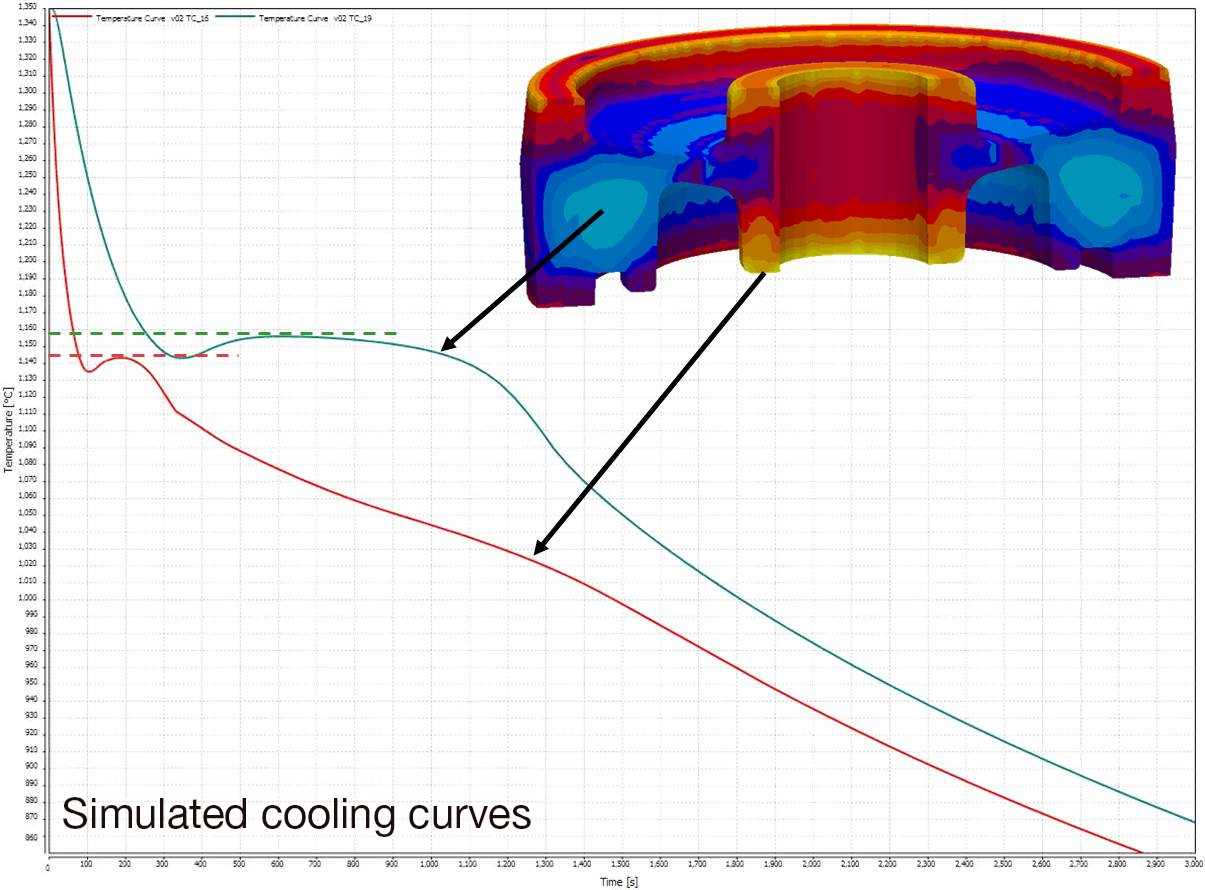

Figure 3: Simulated cooling curves

Due to the delayed onset of the eutectic solidification, however, the precipitation time of the primary phase and, thus, of the primary austenite is extended, which can be shown in the phase diagram.

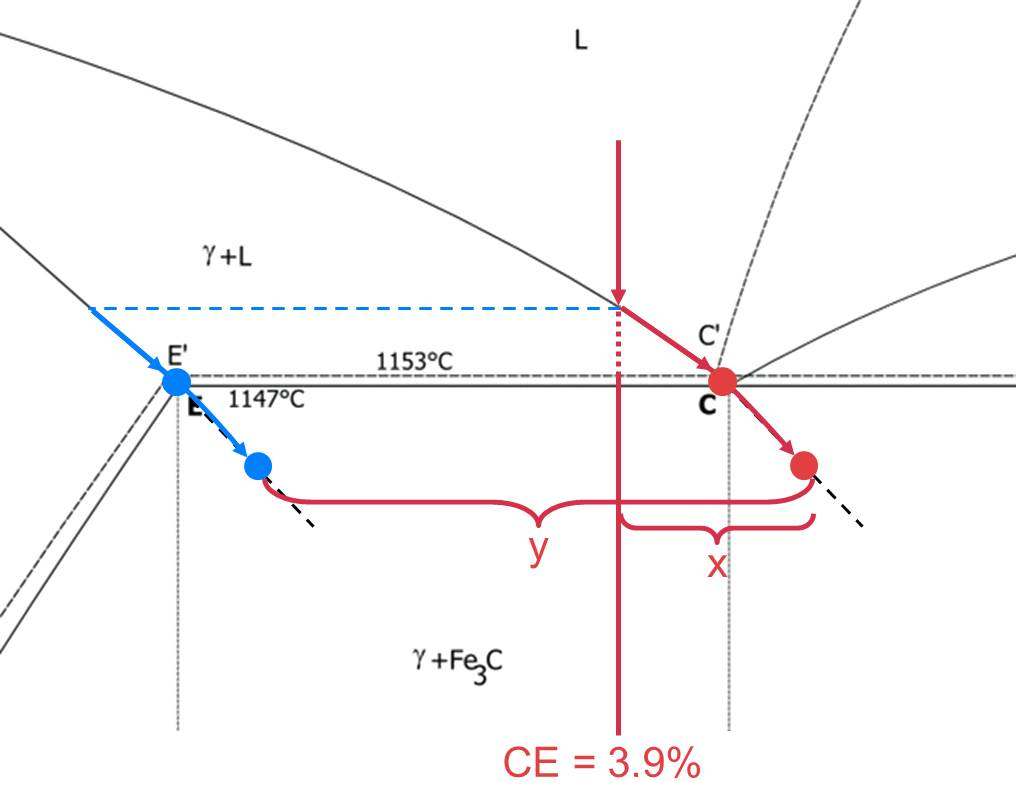

Figure 4: Primary austenite in the phase diagram

Due to the delayed onset of the eutectic solidification, however, the precipitation time of the primary phase and, thus, of the primary austenite is extended, which can be shown in the phase diagram.

If you are interested in learning more about the simulation of cast iron, the influence of different production parameters and the methodological design of casting systems and production conditions using simulation, then book the seminar „Simulation of Cast Iron“ customized to your needs on-site in your company.
