MAGMA ECONOMICS Steel

MAGMA ECONOMICS enables the quantitative evaluation of costs, energy consumption and CO₂ emissions together with quality criteria directly in MAGMASOFT^®.

MAGMA ECONOMICS Example:
Insulating Sleeves & More Return Material or Exothermic Sleeves & Less Return Material: Which Is the Better Solution?

• Step 1: In the Economics Perspective in MAGMASOFT®, first, the existing simulation project was evaluated based on a few cost items: Sleeve costs, Metal costs, Cleaning costs. The total cost estimate is €1,038.
• In a 2nd step, a "what-if" scenario was developed:
  The following assumptions were made:
  • Insulating sleeves: +€3
  • Reduced feeder volume (-47 kg) and, thus, reduced metal costs: -€47
  • Reduced feeder area and, thus, lower cleaning costs: -€60
  • Total cost savings estimated at €76 per part
• Step 3:
  Based on this positive assumption, MAGMASOFT® was used to both implement and simulated the new risering design. For both feeder variants, the simulation showed similar solidification patterns and comparable porosity.
  This confirmed the technical feasibility.

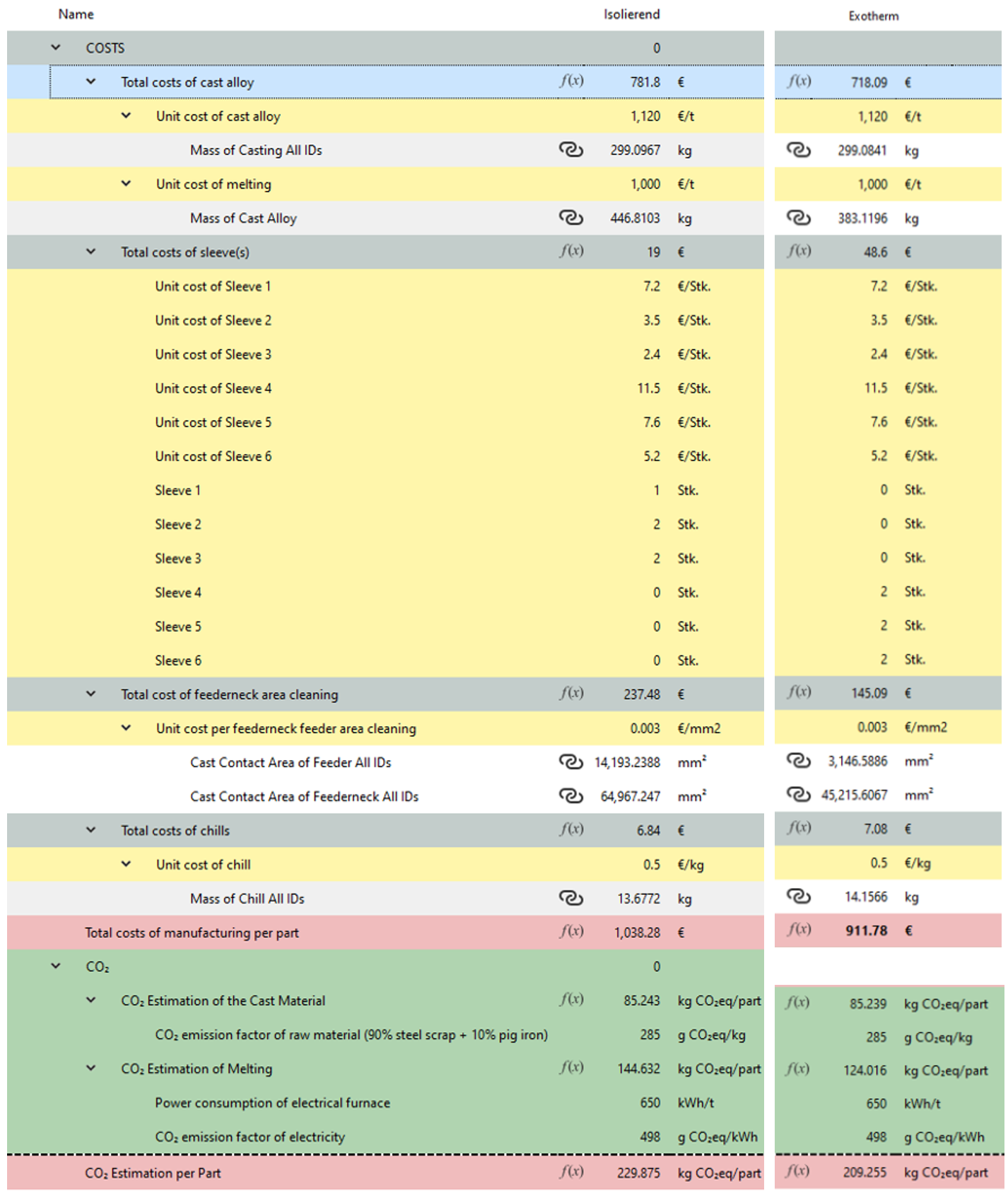

• In the simulation, the actual cost savings were as follows:
  • Feeders: +€30
  • Return material: -€64
  • Cleaning costs: -€92
  • Total costs: -€126
• This resulted in a total cost savings of €126 … despite the supposedly higher feeder costs.
  At the same time,

Mission accomplished: Despite the higher feeder costs, overall cost savings of approx. 12% were achieved along with a reduction in the carbon footprint of approx. 9%.

Porovnejte a otestujte možnosti MAGMA ECONOMICS na uvedeném příkladu, soubory si můžete stáhnout pomocí MAGMAinteract^®.
