Use MAGMA ECONOMICS to Consider and Evaluate MAGMASOFT® Simulation Results for DISA
MAGMA ECONOMICS enables the quantitative evaluation of costs, energy consumption and CO₂ emissions together with quality criteria directly in MAGMASOFT®.
MAGMA ECONOMICS Example: Guided Cylinder on a DISA Line
- An iron foundry is looking to optimize a guided cylinder on its DISA line in terms of costs.
The gating and risering system used so far was optimized to ensure a short pouring time of approx. 10 seconds.
The quality of all 64 cylinders was flawless, as shown here by the porosity result. - All results were calculated with MAGMA ECONOMICS

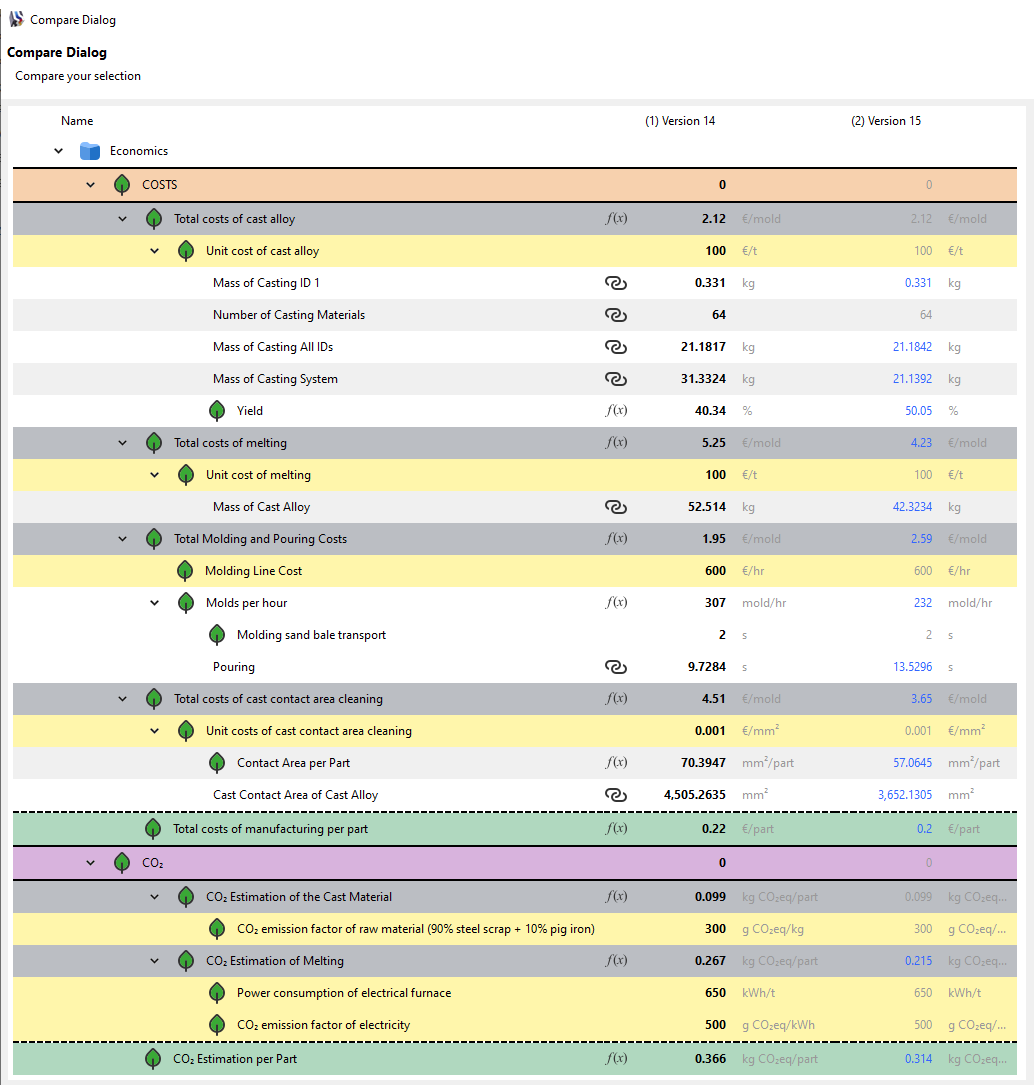

The cost per cylinder was set at € 0.22 with a carbon footprint of 0.37 kg. - To reach the goal, a new gating and risering system was designed. MAGMASOFT® was used to simulate both feasibility and potential cost savings.
- The simulation not only proves the technological feasibility, but also confirms costs savings of 10 %, despite a 35 % increase in pouring time.
- Thus, the foundry reached its goal.
In addition, the CO2 footprint was reduced by approximately 14 %.
MAGMAinteract®
MAGMAinteract® is a free 3D viewer that visualises MAGMASOFT® results and intuitively presents information exported from MAGMASOFT®. This simple and quick way of presenting results improves communication between all project participants working with MAGMASOFT® results.
