HIGHLIGHTS OF MAGMAiron 5.5
HIGHLIGHTS & BENEFITS OF MAGMAiron5.5
HIGHLIGHTS OF MAGMAiron 5.5
Quantitative prediction of shrinkage related defects with a new powerful feeding model taking into account
- Convective heat transport during solidification
- The metallurgical state of the melt
- Inoculation effects on precipitated eutectic graphite
- Atmospheric and local metallostatic pressure on feeding flow
- Graphite expansion and austenite shrinkage
- Flow resistance in mushy zones during solidification
- Impact of mold stability on porosity
MAIN BENEFITS of MAGMAiron 5.5
MAGMAiron quantitatively predicts microstructure and porosity for cast iron as a function of alloy composition, metallurgical state of the melt and inoculation effects and offers
- Increased safety by accurately predicting porosities
- Robust and optimized gating and feeding designs
- Reduced cost by avoiding scrap through optimized process parameters
- Availability by addressing metallurgical and material specifics for grey, ductile and compacted cast iron grades

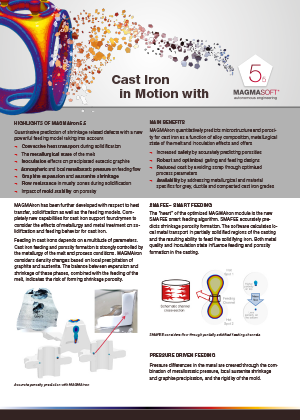

When downloading the PDF, please leave your contact data (you will receive the download link by e-mail) and thus agree to the processing and storage of it by MAGMA casting technology GmbH in Aachen. It will not be passed on to third parties. For further information how we process your personal data, please follow this link Privacy Policy.
Currents due to thermal convection influence the feeding behavior
MAGMAiron 5.5 - Solid Tracer
Accurate porosity prediction with MAGMAiron
SMAFEE considers flow through partially solidified feeding channels
Effect on melt quality on amount of porosity
Different inoculation levels change the extent of predicted porosity
Currents due to thermal convection influence the feeding behavior
Porosity prediction with and without consideration of convection
